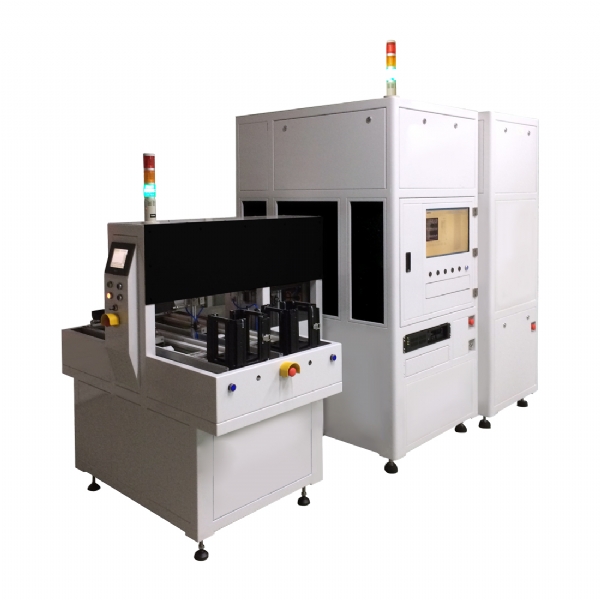

Model:In line EL Inspection

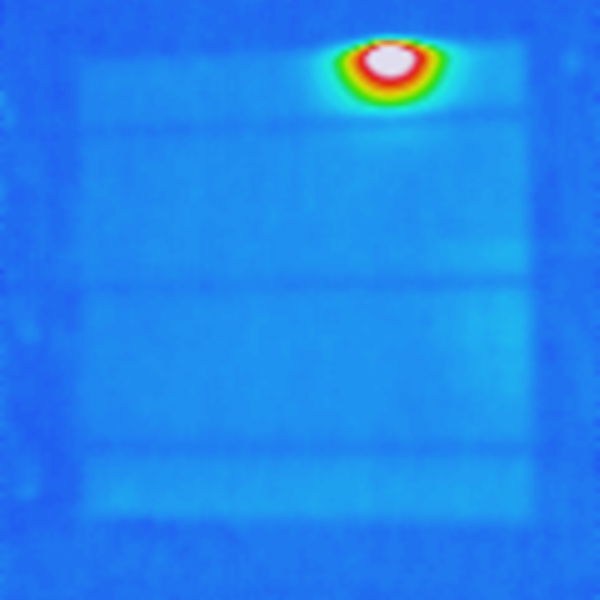

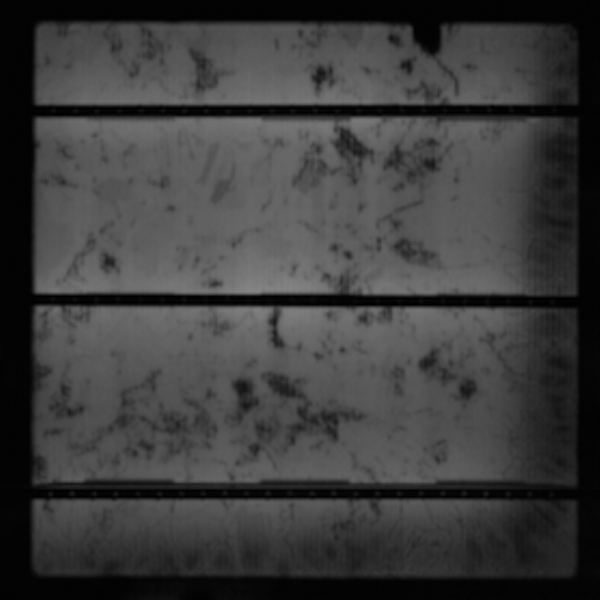

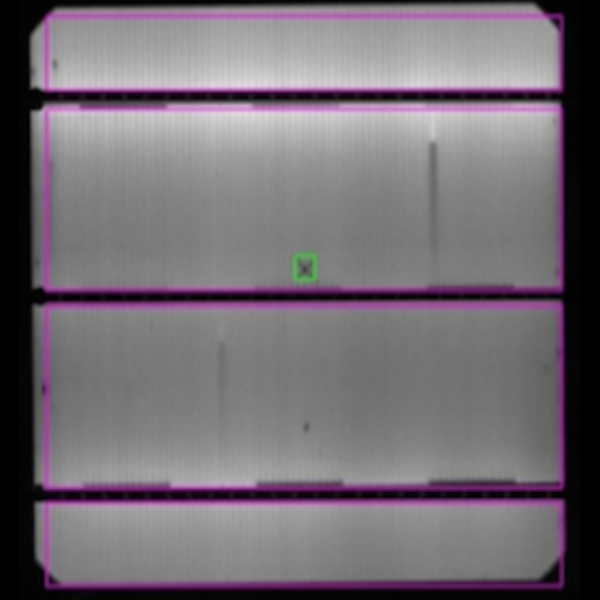

This system uses electroluminescence method to check solar cell quality. It can be integrated with production line after cell sorter. Real time result give customer a quick view of cell quality and software can detect broken fingers, dark area and micro cracks. Thermal CCD can be integrated as option.

Functions

  • Take time 2.5 seconds/cell
  • User friendly
  • Auto detection
  • Auto load/unload system can be integrated
  • Programmable voltage, current, and exposure time control.
  • Connection with MES system



Specification

  • Machine size:900 x 1280 x 2000 mm (without loader/unloader)
  • Cell size:156x156mm(6”)
  • Cell Type:Mono Crystalline/ Multi Crystalline
  • Busbar numbers:2 BB、3 BB、4 BB (5 BB as option)
  • CCD resolution:4M
